Product Description

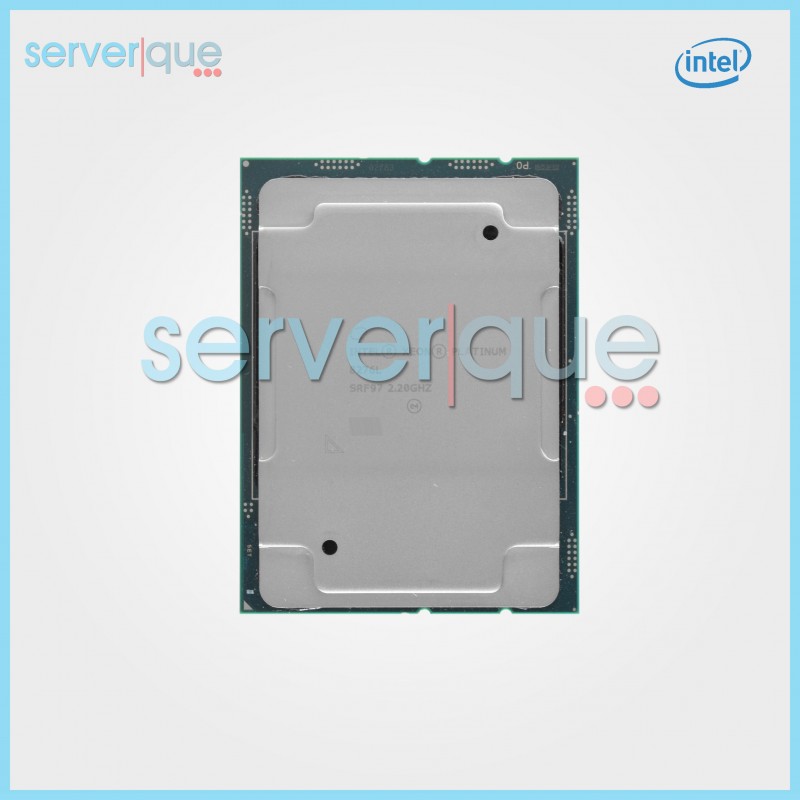

Intel Xeon Platinum 8276 28-Core 2.20GHz 38.5MB 165W FCLGA3647 Processor
Highlighted Features
- Intel
- Xeon Platinum 8276L
- 28-Core
- 2.20GHz
- 38.5MB
- 165W
- FCLGA3647
- Processor
- Retail Part #: SRF97
Note: All product details are provided by Intel Corporation.
The Intel Xeon Platinum 8276 is 28-Cores Processor. It is part of the Xeon Platinum lineup, using the Cascade lake architecture with Socket 3647. Xeon Platinum 8276L has 38.5MB of L3 cache and operates at 2.20GHz by default, but can boost up to 4.00 GHz, depending on the workload.
Specification | |
| Brand: | Intel |
| Processor Number: | 8276 |
| Series: | Xeon Platinum |
| Code Name: | Cascade Lake |
| Product Type: | Processor |
| Number of Cores: | 28 |
| Max Turbo Frequency: | 4.00 GHz |
| Base Frequency: | 2.20GHz |
| Number of Threads: | 56 |
| Cache: | 38.5MB |
| Max # of UPI Links: | 3 |
| TDP: | 165 W |
| Sockets Supported: | FCLGA3647 |
| Memory & Core Details | |
| Max Memory Size: | 1TB |
| Maximum Memory Speed: | DDR4-2933 |
| Max Memory Channels: | 6 |
| Intel Optane Persistent Memory Supported: | Yes |
| ECC Memory Supported: | Yes |
| Technologies Supported | |
| Intel® Deep Learning Boost (Intel® DL Boost): | Yes |
| Intel® Resource Director Technology (Intel® RDT): | Yes |
| Intel® Speed Shift Technology: | Yes |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel® Hyper-Threading Technology: | Yes |
| Intel® Transactional Synchronization Extensions: | Yes |
| Intel® 64: | Yes |
| Instruction Set Extensions: | Intel®SSE4.2, Intel®AVX, Intel®AVX2, Intel®AVX-512 |
| # of AVX-512 FMA Units: | 2 |
| Enhanced Intel SpeedStep® Technology: | Yes |
| Intel Volume Management Device (VMD): | Yes |
Dimensions Specifications | |
| Dimension: | 10 x 8 x 4 in |
| Weight: | 1 lb |
